Pelican Pool & Spa Hoist Measuring Guide

IMPORTANT NOTICE: WATER DEPTH

In accordance with the Disabilities Standards Code, Disability (Access to Premises – Buildings) Standards 2010 Part D5, the Pelican base rim must be positioned on the pool or spa surrounds where the water depth is not less than 500mm and not more than 1300mm.

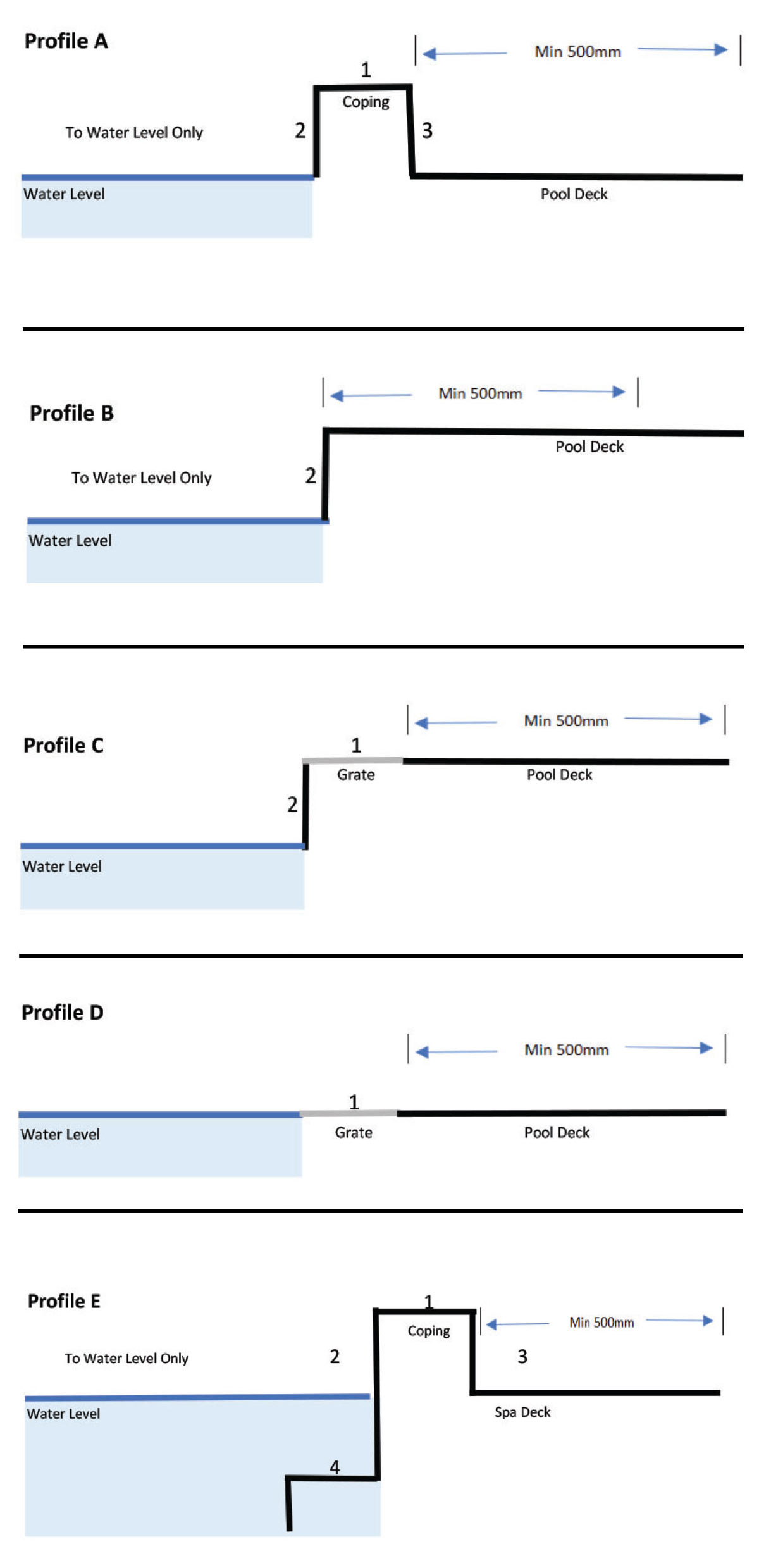

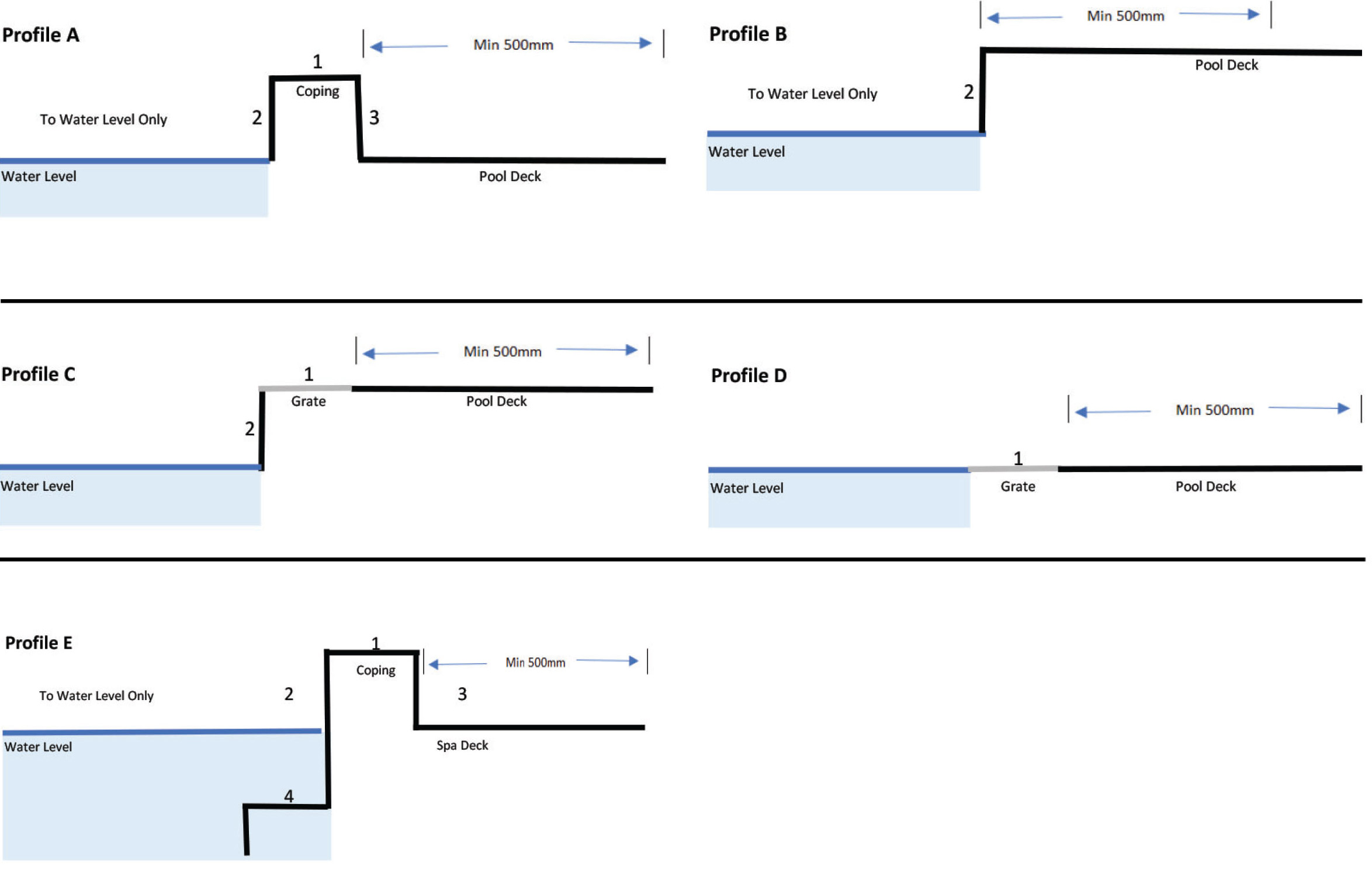

Pool Profiles

Please note which profile best matches your pool – you will be asked to select this in the form below along with supplying the measurements.

Colour options

Pelican Pool & Spa Hoist Measurement Form

Pelican Pool & Spa Hoist Measuring Guide
Max 1300mm

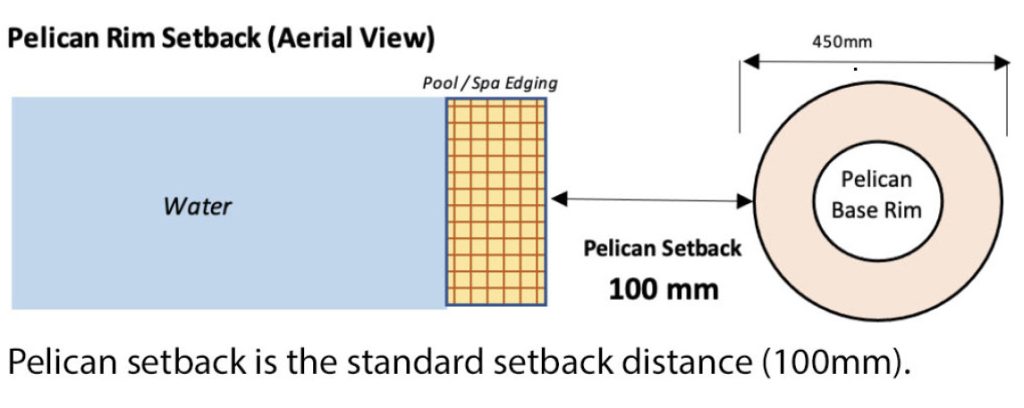

TO SAFELY INSTALL the Pelican Pool & Spa Hoist you will need a FLAT AND LEVEL SOLID CONCRETE PAD to anchor it to. We recommend a minimum ⅓ of cubic metre of concrete is used when pouring your pad. This can be made up as a logical size, for example: 1000mm x 1000mm x 300mm but at a minimum must have a surface area of at least 650mm x 650mm & minimum depth of 100mm. The ideal location is placed up against the pool edge.
Refer to colour swatches at the top of the page.
Scroll to the top of the page to review profile options.
Note: Internal riser may be different to external riser measurement.
Note: Grate width is from pool edge to commencement of concourse.
Note: Grate width is from pool edge to commencement of concourse.
Note: Internal riser may be different to external riser measurement.
Note: Internal riser may be different to external riser measurement.
If other substrate material please advise
