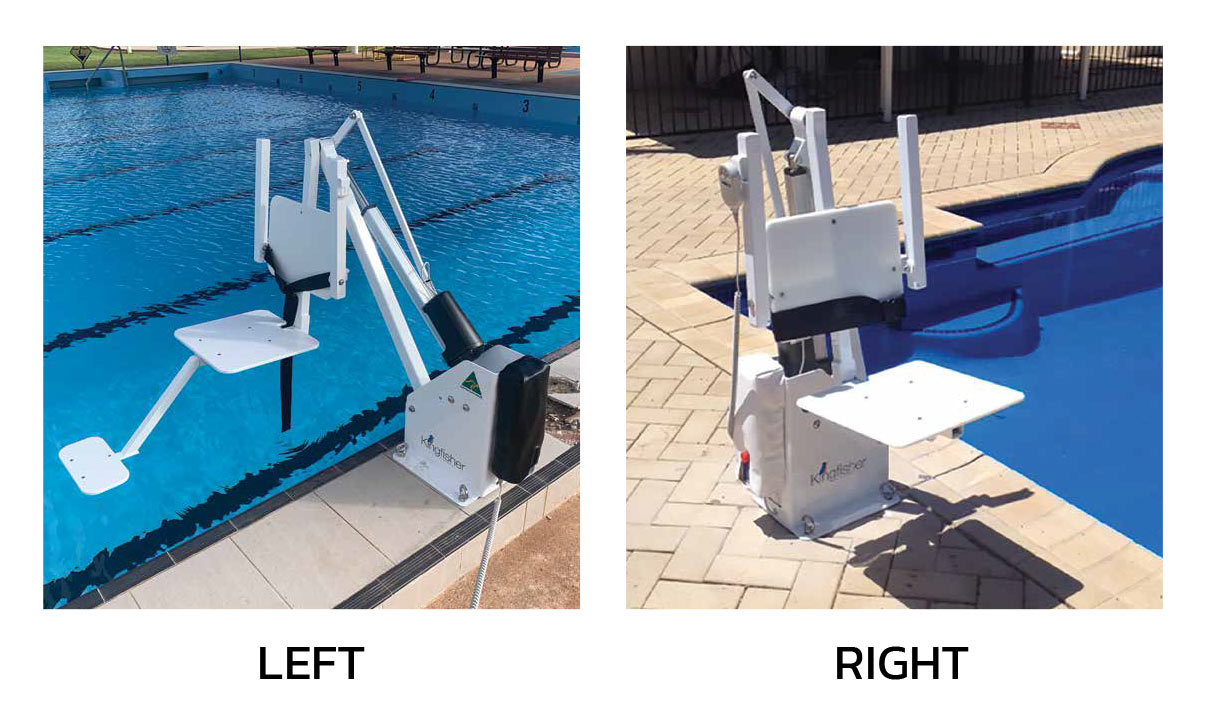

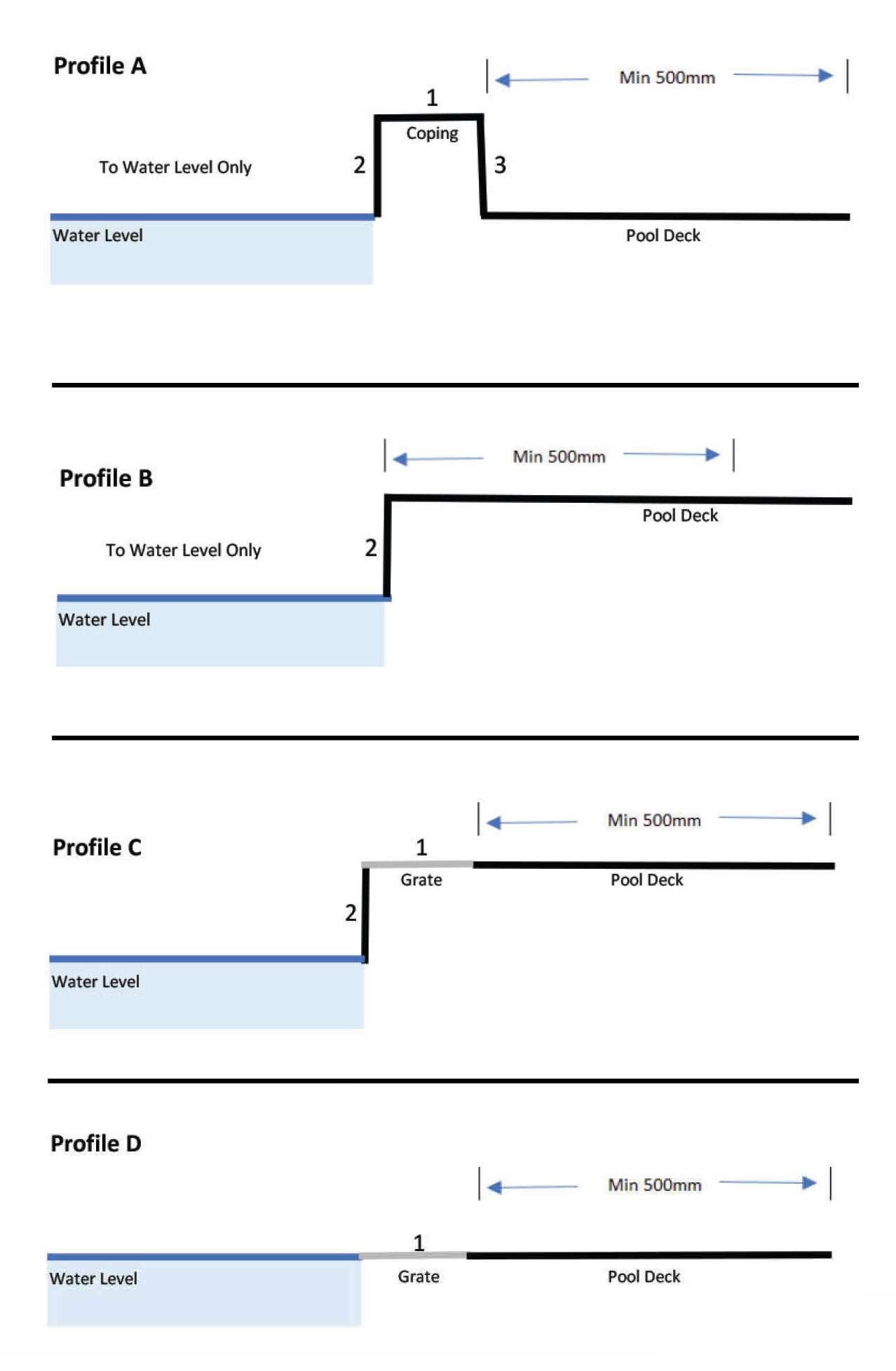

Kingfisher Pool Access Seat Measuring Guide Kingfisher Pool Access Seat Measurement Form Kingfisher Pool Access Seat Measuring GuideNamePhoneEmailInstall AddressAddressSuburbStatePostcodeWater depth at the point of entry (mm) (ie Kingfisher location)Max 1300Which side of the pool will the unit be mounted to? Left RightRefer to image guide.Leg rest required? (Leg rest required if setback is greater than 250mm to max 400mm) Yes NoWhat is the base substrate material the hoist will be installed on?- Select -Concrete PadTiles Over ConcretePavers Over ConcreteTimber DeckingOtherBase substrate materialIf other substrate material please adviseDo you have the minimum concrete width & thickness to mount the hoist on pool deck? Yes NoTO SAFELY INSTALL the Kingfisher Pool Access Seat you will need a FLAT AND LEVEL SOLID CONCRETE PAD to anchor it to. We recommend a minimum ⅓ of cubic metre of concrete is used when pouring your pad. This can be made up as a logical size, for example: 1000mm x 1000mm x 300mm but at a minimum must have a surface area of at least 650mm x 650mm & minimum depth of 100mm. The ideal location is placed up against the pool edge. If tiles or pavers have been used, above the concrete slab, we suggest 150mm anchors for installation.Which profile best matches your pool? Profile A Profile B Profile C Profile DRefer to image guide.Profile A1 Coping Width (mm)Profile A2 Internal Riser (mm)Note: Internal riser may be different to external riser measurement.Profile A3 External Riser (mm)Profile B2 Internal Riser (mm)Profile C1 Grate Width (mm)Note: Grate width is from pool edge to commencement of concourse.Profile C2 Internal Riser (mm)Profile D1 Grate Width (mm)Note: Grate width is from pool edge to commencement of concourse.Are there any property access considerations/risks?Submit Form
